Dual Terminal Fuse Block 30-300 AMP Marine Rated Battery Fuse MRBF Fuse Holder

Double Terminal Fuse Block Marine Rated Battery Fuse (MRBF) 58V DC Max IP66 Waterproof Specifications: The fuse block is compatible with fuses that have a maximum voltage rating of 58V and an amperage rating ranging from 30A to 300A. It is designed to fit M8 (5/16") stud size and has an M10 (3/8") mounting hole for easy installation. Advantage: Weatherproof and suitable for harsh environments: The fuse Holder is built to withstand harsh conditions typically found in small open-cockpit boats and other challenging environments. Insulating cap for accidental short prevention: The fuse comes with an insulating cap that helps prevent accidental shorts, enhancing safety and protecting the circuits. Ignition protected with MRBF fuses: When used with MRBF fuses, this fuse offers ignition protection, ensuring safe operation in applications where ignition sources are present. Universal fit and stackable terminals: The fuse features a new isolated stud design that uses standard M8 (5/16") hardware, allowing for a universal fit. Additionally, the design permits the stacking of terminals, enabling efficient use of space. Package Included: 1*Double Studs 1*Red insulator cap 2*Washer 2*Lock washer 2*M8 hex nut.

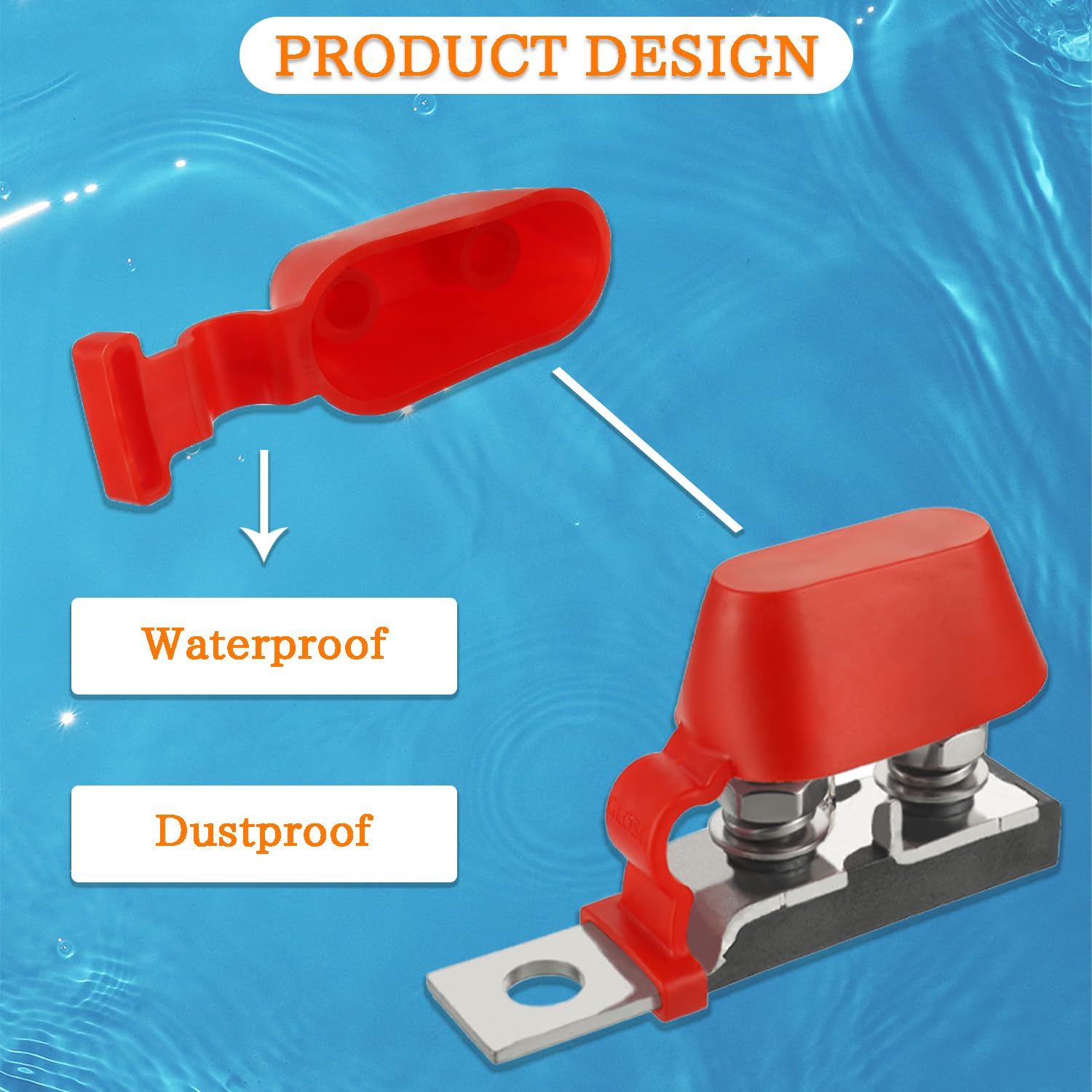

• The MRBF Terminal Fuse Block package consists of a comprehensive set of components, including one double studsk, one red insulator cap, two washer, two lock washer, and two M8 hex nut.
• The fuse block is compatible with fuses that have a maximum voltage rating of 58V and an amperage rating ranging from 30A to 300A.

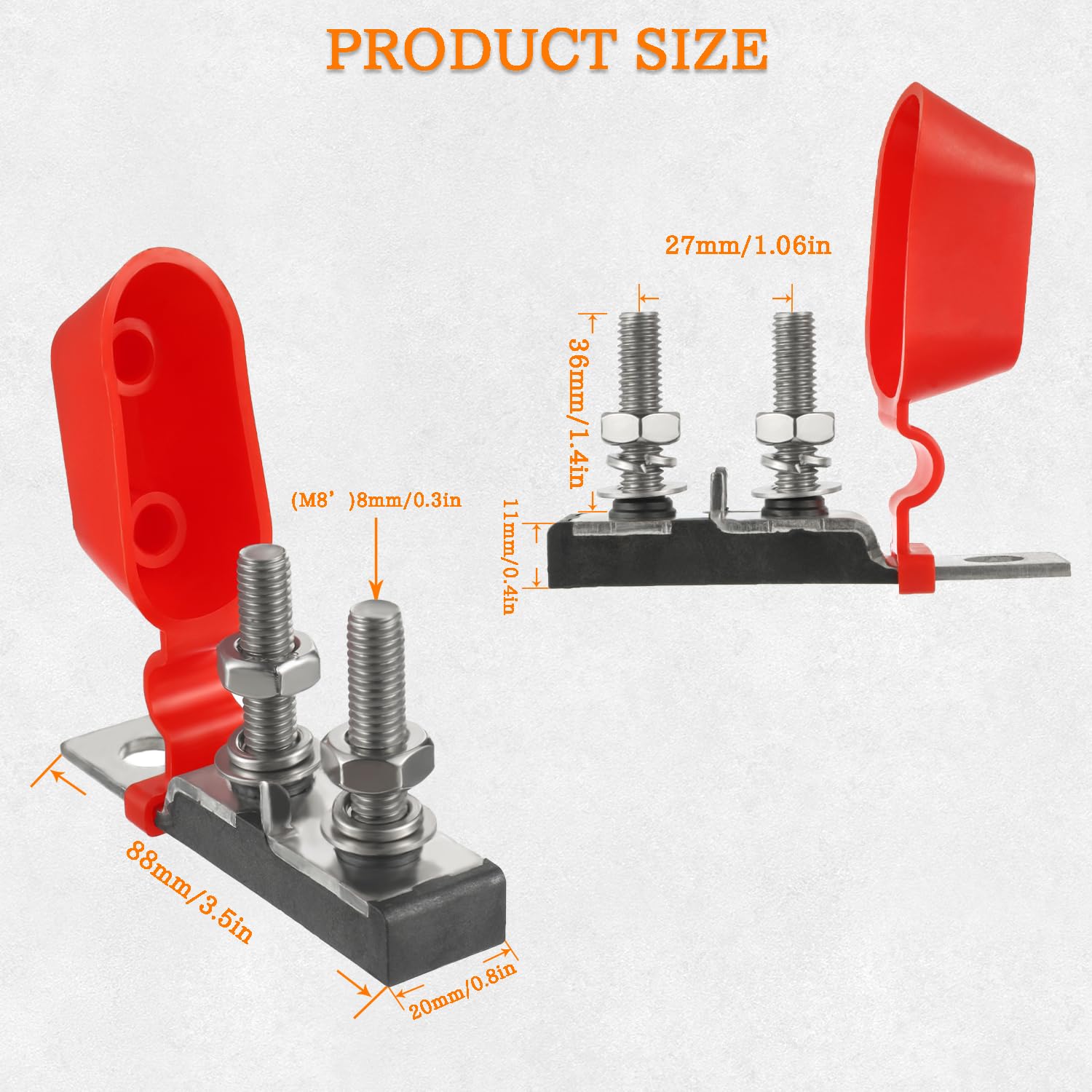

• It is designed to fit M8 (5/16") stud size and has an M10 (3/8") mounting hole for easy installation.
• The fuse block is ignition protected, making it suitable for installation on gasoline-powered boats, and it meets IP66 standards, offering protection against powerful water jets.
• With a 10,000 AIC at 14V DC, the fuse block satisfies ABYC requirements for DC Main circuit protection on large battery banks. It's important to use Terminal Fuse Blocks rather than mounting fuses directly on battery terminals for proper functionality and safety. The package includes a single fuse block.
