2 Ch RCA Audio Over Optic Fiber Extender with 1 x LC SFP Module, 20 Km Over SMF or 2km Over MMF, Supports 24 & 16-Bit Digitally Encoded Analog Audio

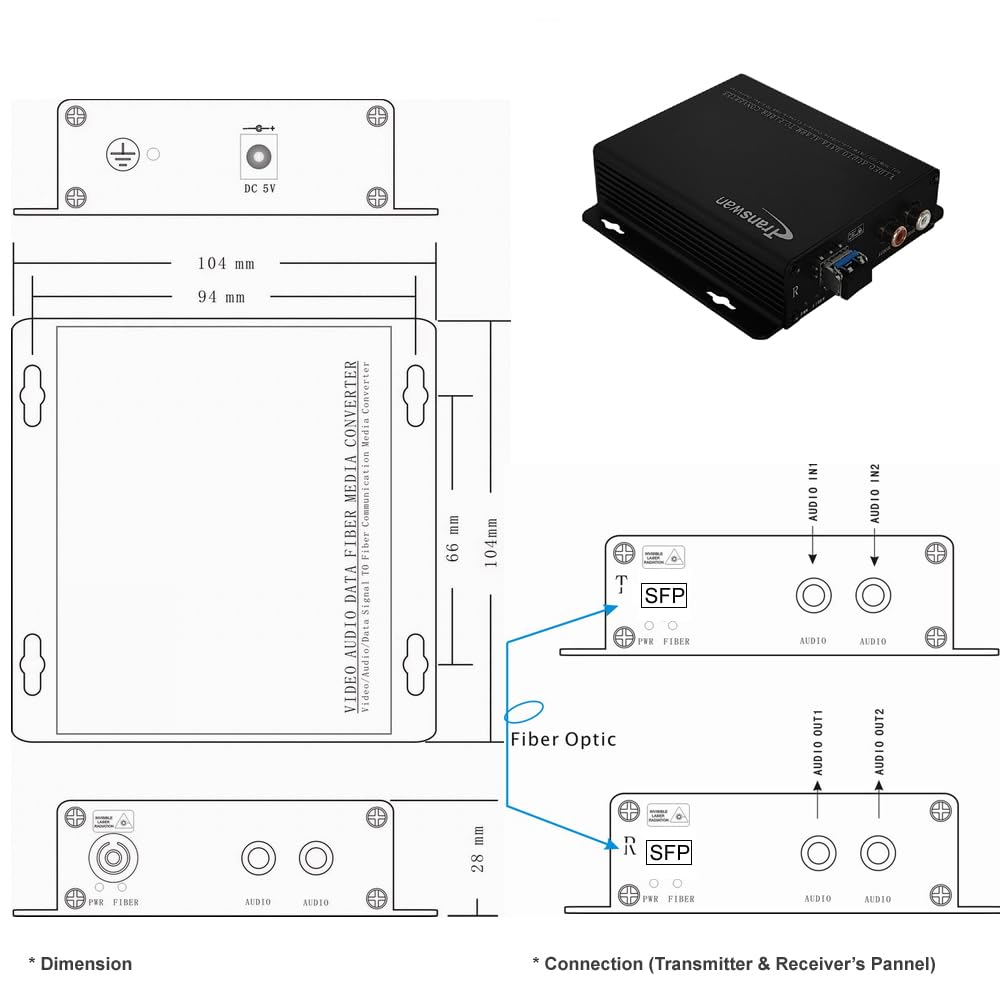

Description BY-RCA-323-LC support 2 channels Audio (RCA) over one multi-mode / single-mode optical fiber. the set includes optical transmitter and receiver. Applications: Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV etc SPECS Audio: Channels: 2 Ch Connector: RCA Input/output Impedance: 600ohm(unbalanced) Max input/output voltage: 3.0Vp-p Frequency Response: 10 Hz～29kHz @±3dB SNR: > 70dB Optical: Wavelength: 1310nm Optical Connector: 1 x LC Supported Optical Fiber: Universal Single-mode Fiber / Multi-mode Fiber Distance: 20 Km (SMF), 2 Km (MMF) Electrical & Mechanical: Input Power Requirements: DC 5V@2A Power Adapter: AC 900V~240V Power Consumption: <3W Stand-Alone Dimensions: 104 mm × 104 mm × 28 mm Shipping Weight: (include Transmitter & Receiver ) 0.8kg Environmental: Operating Temperature: -20°C ~ +75°C Storage Temperature: -40°C ~ +85°C Relative Humidity: 0% ~ 95% (non-condensing) MTBF: >100,000 hours Package Includes: 1. 1 x transmitter with SFP module 2. 1 x receiver with SFP module 3. 2 x Power Supply Adapter DC 5~12V with US/EU/UK/AU plug 4. 1 x Manual

• 2 Channels RCA Audio over Fiber Extend to 20 Km SMF / 2 Km MMF, Supports 24 & 16-Bit Digitally Encoded Analog Audio
• Line Level Unbalanced Audio Operation to Optic Fiber
• No EMI, RFI, No Cross Talk / Audio Distortion and no ground loops; No Loss in Signal Quality; No Delay.
• Support Point-to-Point or Daisy-Chain (Cascaded Audio) connection
• LED Indicators for Instant System Monitoring
• Plug and Play (no software driver), Standalone or Rack Mount in FVC14 Chassis
